Mgo fire-proof board plant magnesium external panel

Size:
Availability:
Quantity:
  • mgo fireproof board

  • WT

|

 Product Description

1)New Fireproof Building Materials Magnesium Oxide Board / Magnesium Sulfate Board / Mgo Board is a technologically advanced building material that offers superior performance in every category when compared to traditional wood, gypsum and cement based products. Mgo board is 100% fire resistant, 100% water resistant proof, very strong, environmental and affordable.

2)MGO board uses proprietary with Mgo,MgCl2,Perlite,Fiberglass, Chip compounds to deliver a multi-purpose, versatile, non-combustible, and unique board material. This intergral, hard, inert and paperless construction panel has superior characteristics over panels made from gypsum,clay or wood and paper particles. So for an easier, better and faster job, MGO board is best for interior and exterior construction.

|

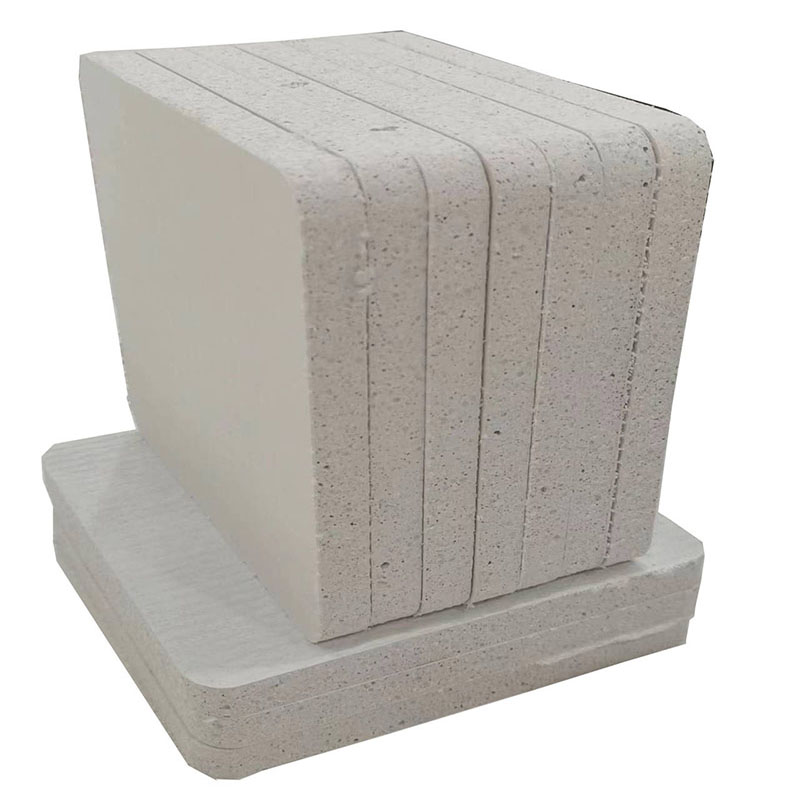

 Product Display

微信图片_20230727154458


60


43





|

 Data Sheet

Inspection Items Technology Index
Product name Magnesium fire-resistant board
Material MGO
Product size 1220*2440mm 1220*2400mm 1200*3000mm or customized
Normal thickness 8mm、10mm、12mm、14mm、25mm
Fireproof rating A1
Fire resistance duration 60min/120min
Water resistance > 3d, no swelling, no cracking.
Fire integrity No loss of integrity of specimen for 2.00h test
Weight per square meter 10-15kg
Compressive strength ≥3000PA
Product features Fire resistance, flame retardancy, compression resistance, good sealing, etc
Operating environment Firewalls. Partitions.Structural sheathing for wood or metal stud walls.Shower stall tile backer board, etc


|

 Optional Features

Magnesium Sulfate Mgo Board is fireproof, water resistance, high strength, non-toxic, noncombustible, high strength, lightweight,convenient for installation, long service life and has a special performance compare with traditional building materials.

• Fire resistant (Class A1) building material

• Lighter, more flexible and stable than traditional sheeting systems

• Time and material saving - dramatically reducing construction costs

• Environmentally friendly, applying a sustainable production process with reduced CO2 footprint

• Ideal for time, safety and health sensitive construction applications
