Phenolic exterior wall panel
WT

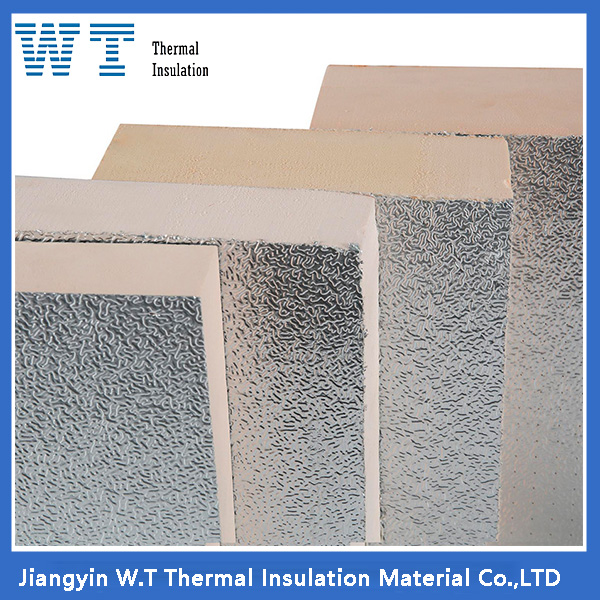

Introducing our Phenolic Insulation Board, a closed-cell rigid foam plastic made with phenolic resin, flame retardants, smoke suppressants, curing agents, foaming agents, and other additives, all expertly formulated for superior fire resistance and insulation properties.
Our board features a textured aluminum foil surface that not only enhances its aesthetic appeal but also improves its durability and light diffusion, thanks to its distinctive orange peel pattern.
This versatile product is ideal for a wide range of applications, including cold storage, kitchen cabinets, luggage, air conditioning shells, aluminum products, roofing, wall decoration, insulation boards, ventilation, and more.
Choose our Phenolic Insulation Board for unparalleled fire protection and insulation performance, backed by our commitment to quality and customer satisfaction.
Inspection Items | Technology Index | Inspection Items | Technology Index |
Conventional thickness | 30-220mm | Bending strength | ≥1.1 MPa |
Length/Width (mm) | 2000x1200, 3000x1200, 4000x1200 | Leakage air volume | ≤ 1.2% |
Fireproof rating | A2 | Thermal resistance | 0.86 m2K/W |
Density of core material | 60-70kg/m3 | Smoke density | ≤9, no toxic gas release |
Water absorption | ≤3.7% | Dimension stability | ≤2% (70±2℃, 48h) |
Thermal conductivity | 0.19-0.02 W(mK) | Oxygen index | ≥45 |
Heat resistance | -150 ~ +150℃ | Duration of fire resistance | >1.5h |
Air flow max | 15M/s | Formaldehyde Emission | ≤0.5Mg/L |
Compression strength | ≥0.18 MPa |
